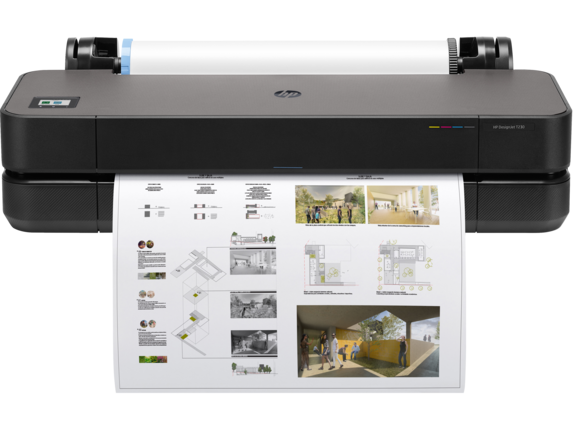

HP DesignJet T230 24-inch Printer
Designed to fit your office, budget, and the way you work, the world’s smallest plotter Reliable HP DesignJet Plotter provide outstanding simplicity. Send multiple files in just one click. Print your A1/D plot as fast as 35 seconds. 500 MB memory.
Extreme simplicity
Save time with the HP’s easiest job submission by Reliable HP DesignJet Plotter —send multiple files in one click with HP Click software. Print with confidence you’ll get the results you expect with an intuitive driver and true print preview. With an accessory option, print multi-size A3/B and A1/D projects without manually switching the media source.
Fits your office and budget
Save space with the HP’s smallest plotters designed to fit your office. Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1/D pages per month. More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.
Fits the way you work
Avoid waiting by the printer with high-speed printing as fast as 35 seconds per A1/D plot. Be more productive—save time from job prep to final print by printing your projects via HP Click. Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app.
Specifications |
|
| Functions | |
| Model size | 610 mm |
| Print speed | 35 sec/page on A1, 68 A1 prints per hour[1] |
| Maximum optical density (black) | 8 L* min/2.10 D[4] |
| Internal Storage | None |
| Line accuracy | ±0.1%[3] |
| Print technology | HP Thermal Inkjet |
| Print languages | JPEG, URF |
| Printer drivers included | Raster driver for Windows and macOS; HP Click Driver for Windows 11 |
Printing path |
Print Anywhere with HP Smart app, HP Click App, HP Click Driver for Windows 11, HP driver for macOS, HP driver for Windows, printing support for Chrome OS, email printing, HP Print Service Plugin for Android, Apple AirPrint |
| Non-printable area (cut-sheet) | 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray) |
| Non-printable area (roll media) | 5 x 5 x 5 x 5 mm |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct |
| Print multi-size files in one click | Yes |
| Remote print enabled | Yes |
| Memory, standard | 512 MB |
| Media sizes standard (metric rolls) | 279 to 610 mm |
Media thickness |
Up to 11.8 mil |
| Finished output handling | Sheet feed, roll feed; automatic horizontal cutter |
| Media sizes, custom | 210 x 279 to 610 x 1897 mm |
| Media thickness (metric) | Up to 0.3 mm |
| Supported Primary Applications | Line drawings; Presentations; Renderings |
| Power consumption | <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off) |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max |
Electromagnetic compatibility |
Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
| Environmental certification | ENERGY STAR; WEEE; EU RoHS; EAEU RoHS; REACH; ErP; EPEAT Gold |
| Safety | USA and Canada (CSA certified); EU (LVD, EN 60950-1 and EN 62368-1 compliant); Russia, Belarus, Khazakstan (EAC); Ukraine (UA); Singapore (PSB); China (CCC); Argentina (IRAM); India (BIS); Mexico (NYCE) |
| Acoustic pressure emissions | 42 dB(A) (operating), <16 dB(A) (idle) |
| Acoustic power emissions (active, printing) | 5.8 B(A) (operating), <3.4 B(A) (idle) |
| Post consumer recycled plastic in hardware by weight of plastic | 30% |
| Operating altitude | Up to 3000 m |
Operating humidity range |
20 to 80% RH |
| Operating temperature range | 5 to 40ºC |
| Storage temperature range | -25 to 55ºC |
| High capacity of page yield (colour) | 20 ml of ink yields 101 A1/D pages, taking into account maintenance routines[2] |
| Ink drop | 5.5 pl (C, M, Y); 12 pl (K) |
| Ink types | Dye-based (C, M, Y); pigment-based (K) |
| Print head nozzles | 1376 |
| Print heads | 1 (cyan, magenta, yellow, black) |
| Software included | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant |
Manufacturer Warranty |
One-year limited hardware warranty |
| What’s in the box | HP DesignJet T230 24-in Printer, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
| Contact Us | Elite Print Solutions |
| More Details | HP |
| Weight | 28 kg |
|---|---|
| Dimensions | 58 × 116 × 41 cm |
| Brand |
